             A constructed flywheel with curved spokes.

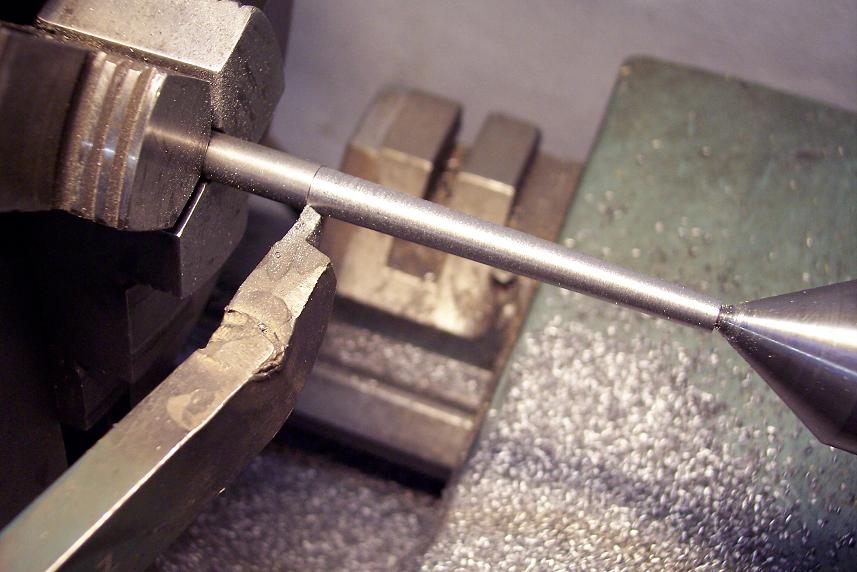

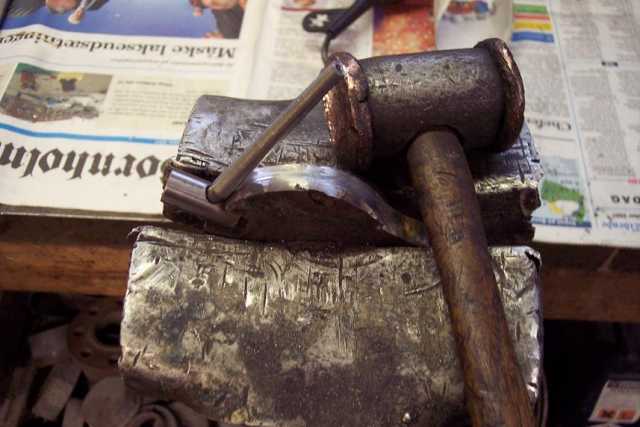

                Turning the conical spokes.                     Bending the spokes in a jig.

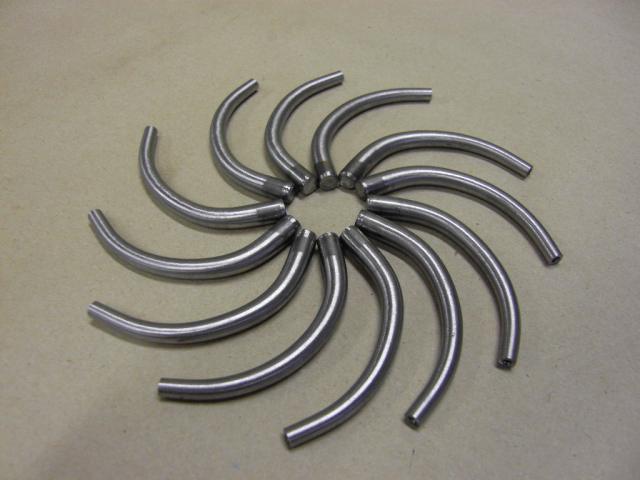

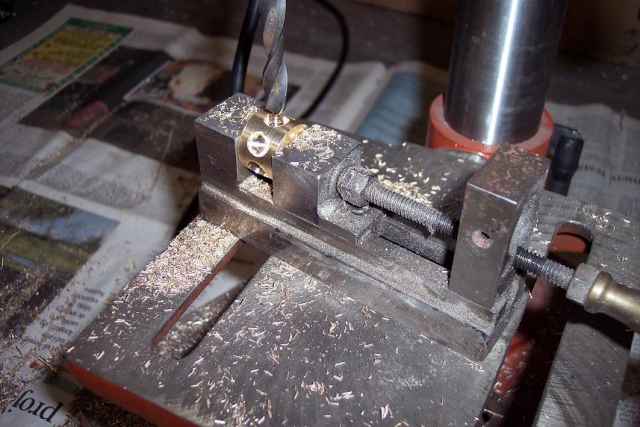

                        Curved spokes                      Drilling holes in marked hub for spokes

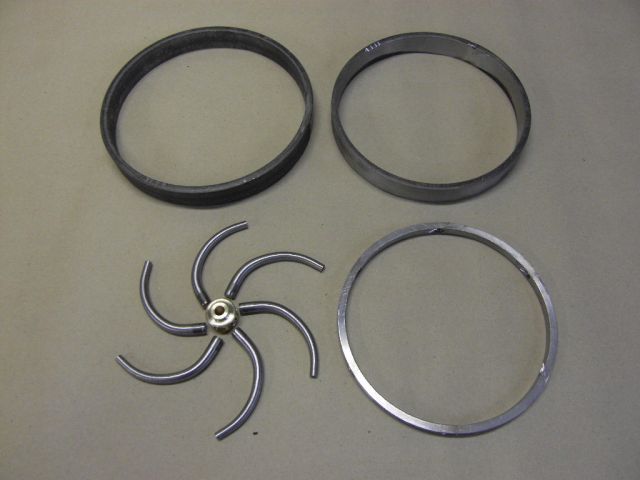

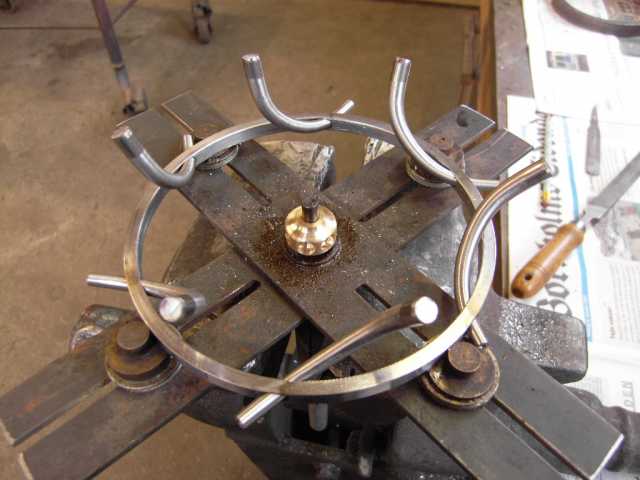

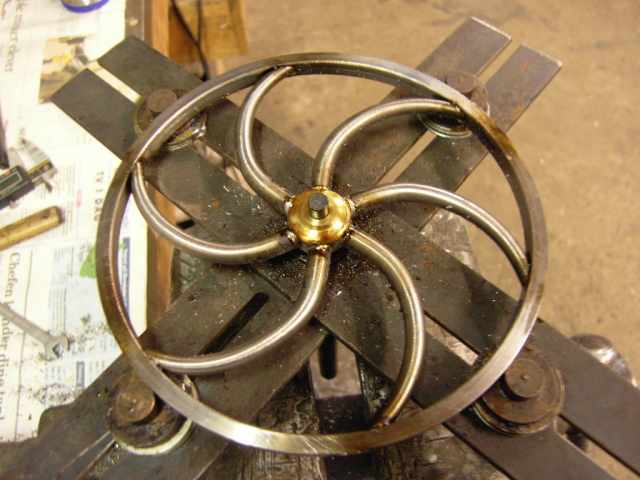

    The flywheel parts before assembling            The flywheel centered in a solder jig

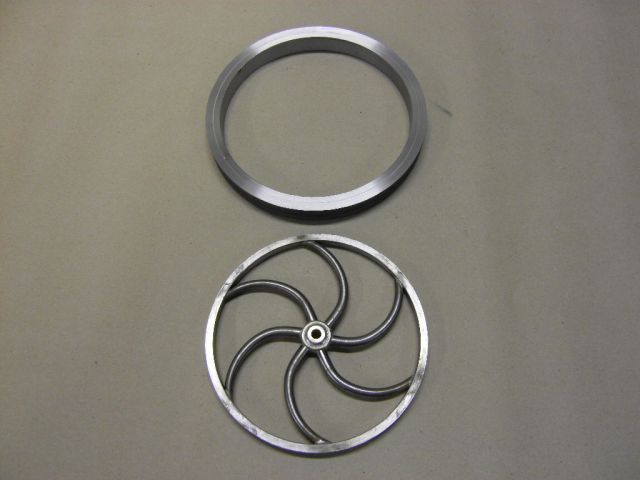

          Silver soldering the flywheel            Soldered flywheel and assembled outer rings

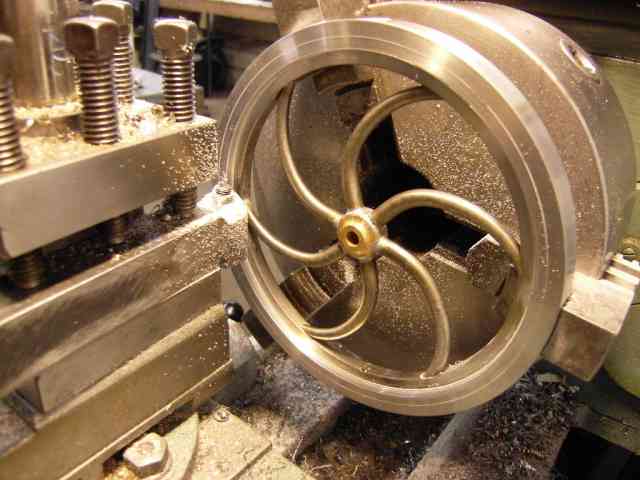

                 The assembled flywheel                         Machining the flywheel rim

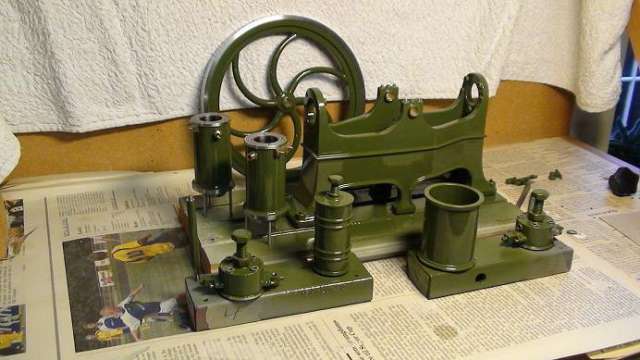

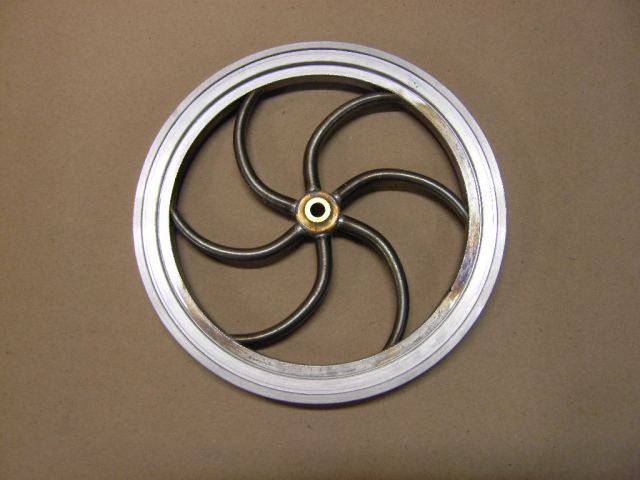

               The finshed flywheel                        The painted flywheel and engine parts

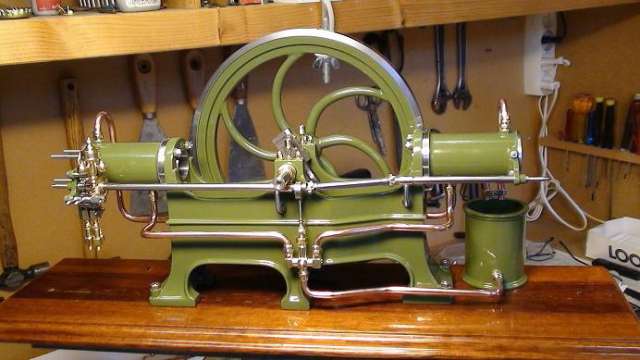

             The flywheel on the unfinished double opposed 2 cyl hot bulb engine.
